How to Set Up 5.1 Surround Sound on a Windows 10 PC

Windows 10 supports 5.1 surround sound out of the box, but it defaults to stereo until you tell it how your speakers are arranged. Setting up 5.1 means connecting six speaker channels (front left, center, front right, surround left, surround right and a subwoofer), selecting 5.1 Surround in the Speaker Setup wizard, and testing each speaker. This guide covers analog, HDMI and optical (S/PDIF) connections, the configuration steps, and fixes when only two speakers play.

Quick Answer

Press Windows + R, type mmsys.cpl and press Enter. Select your speakers or receiver, click Configure, choose 5.1 Surround, click Test, and follow the wizard to finish.

Step 1: Connect Your Speakers

• Analog (3.5 mm jacks): use your sound card or motherboard’s rear jacks. Typically green = front left/right, black = rear (surround) left/right, orange = center/subwoofer. Some boards use gray for side speakers. Check your motherboard manual.
• HDMI to a receiver or TV: connect the PC’s HDMI output to an AV receiver. HDMI carries multichannel audio, including uncompressed PCM 5.1.
• Optical/S/PDIF: connects to a receiver but only carries compressed 5.1 (Dolby Digital or DTS). Games and most apps output uncompressed audio, so optical often falls back to stereo unless your sound card supports real-time Dolby Digital Live or DTS encoding.
• USB 5.1 speaker systems or headsets: install the manufacturer’s software.

Install the latest audio driver from your PC or motherboard maker for the full set of options.

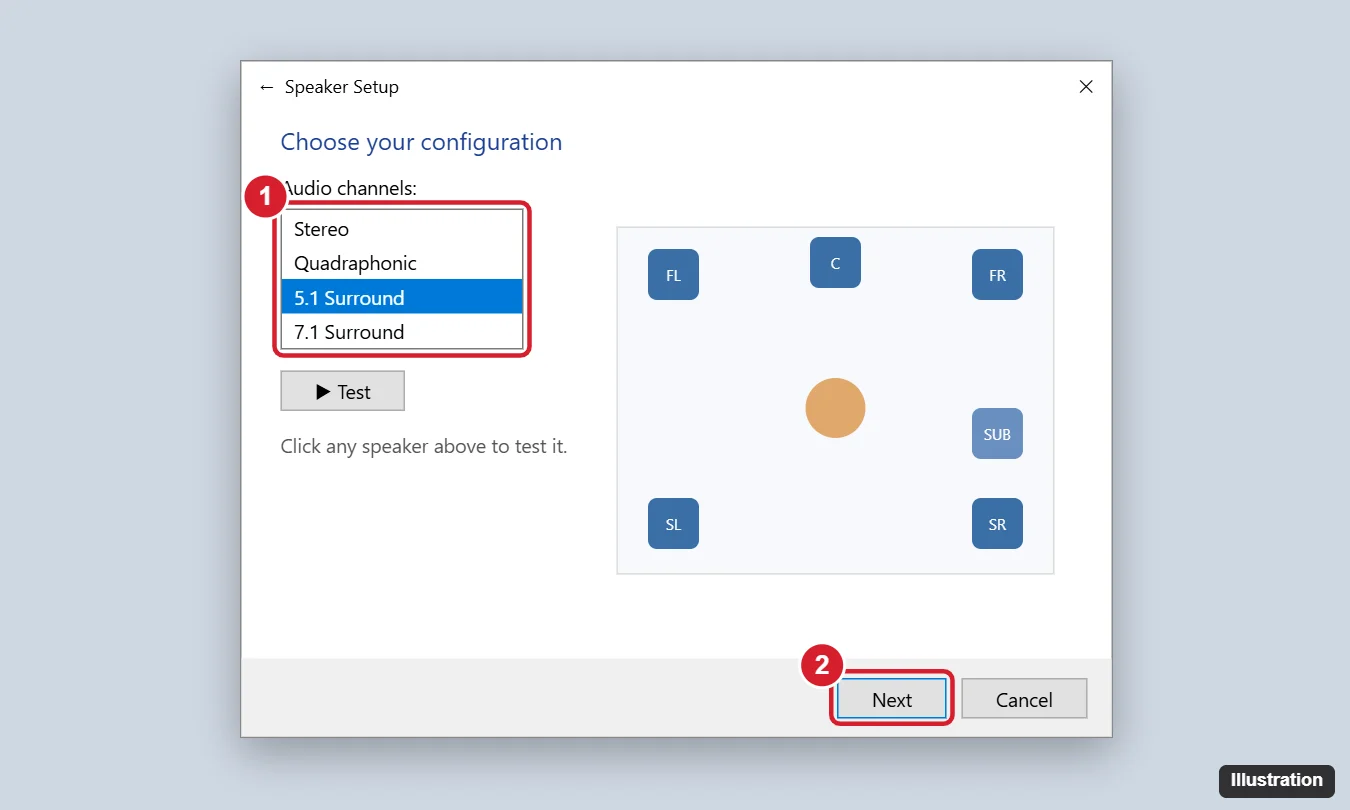

Step 2: Configure 5.1 in Windows 10

1. Right-click the speaker icon in the taskbar and choose Sounds (or run mmsys.cpl).
2. Open the Playback tab.
3. Select your output (Speakers, Realtek audio, or your receiver’s HDMI name) and click Set Default.
4. Click Configure.
5. Under Audio channels, choose 5.1 Surround. If you see two 5.1 options, choose the one that matches your speaker layout (side or rear surround).
6. Click Test or click each speaker in the diagram to confirm the sound comes from the right place, then click Next.
7. Leave all optional speakers checked (Center, Subwoofer, Side pair) and click Next.
8. Choose which speakers are full-range. For small satellites with a subwoofer, leave them unchecked so bass goes to the sub. Click Next and Finish.

Step 3: Set the Audio Format

1. In the Sound window, select your speakers and click Properties.
2. On the Advanced tab, pick a default format such as 24 bit, 48000 Hz.
3. On the Supported Formats tab (for HDMI/optical), check the encoded formats your receiver supports, such as Dolby Digital and DTS Audio.

Step 4: Set Up Apps and Games

• In games, set the audio output to 5.1 or Surround in the game’s audio settings.
• Media players like VLC let you set the audio output to 5.1 or pass through Dolby/DTS audio to your receiver.
• Streaming apps output 5.1 only for content that has it and if the app supports surround on PC.

Upmix Stereo to All Speakers

Most stereo music plays only on the front speakers. To fill all six channels, turn on your receiver’s upmixing mode (such as Dolby Surround or DTS Neural:X), or check your audio driver’s control panel for a “Speaker Fill” or similar option.

Headphones: Spatial Sound Instead

For virtual surround in headphones, right-click the speaker icon > Spatial sound and choose Windows Sonic for Headphones (free) or Dolby Atmos for Headphones (paid app). Don’t use 5.1 Speaker Setup for regular stereo headphones.

Using wireless speakers or headphones? Here’s how to turn on Bluetooth on Windows 11.

Troubleshooting

• 5.1 option missing: update the audio driver, and make sure you selected the right output device. Optical connections usually show only stereo.
• Only front speakers work: check cable colors, run the Test button, and make sure the content is actually 5.1. Stereo content plays on the front pair only.
• No center or subwoofer: the center/sub cable is often swapped. Some systems also need the center and subwoofer enabled in the driver software.
• Swapped channels: swap the cables at the speaker end, or use the driver software to remap channels.
• Run the troubleshooter: Settings > Update & Security > Troubleshoot > Additional troubleshooters > Playing Audio.

Frequently Asked Questions

Does Windows 10 support 7.1?

Yes. Choose 7.1 Surround in the same wizard if your hardware supports it.

Why does my receiver show “PCM 2.0”?

Windows or the app is sending stereo. Reconfigure the speakers as 5.1 and check the app’s audio settings.

Is this the same on Windows 11?

Yes, mmsys.cpl and the Configure wizard work the same. Windows 10 reached end of support on October 14, 2025.

Summary

1. Connect speakers by analog, HDMI or optical.
2. Open mmsys.cpl, select the device and click Configure.
3. Choose 5.1 Surround and test each speaker.
4. Set 5.1 output in games and media players.
